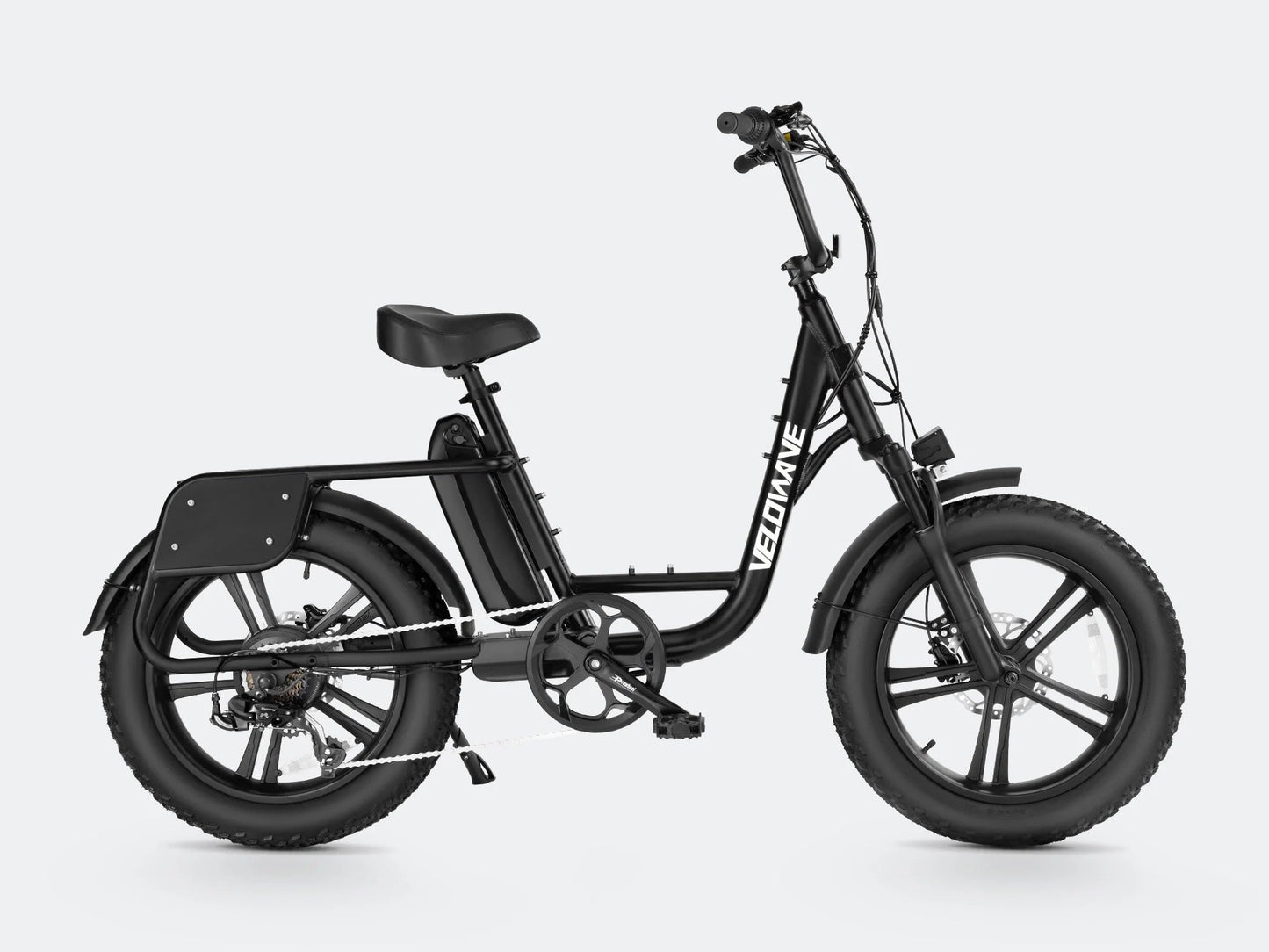

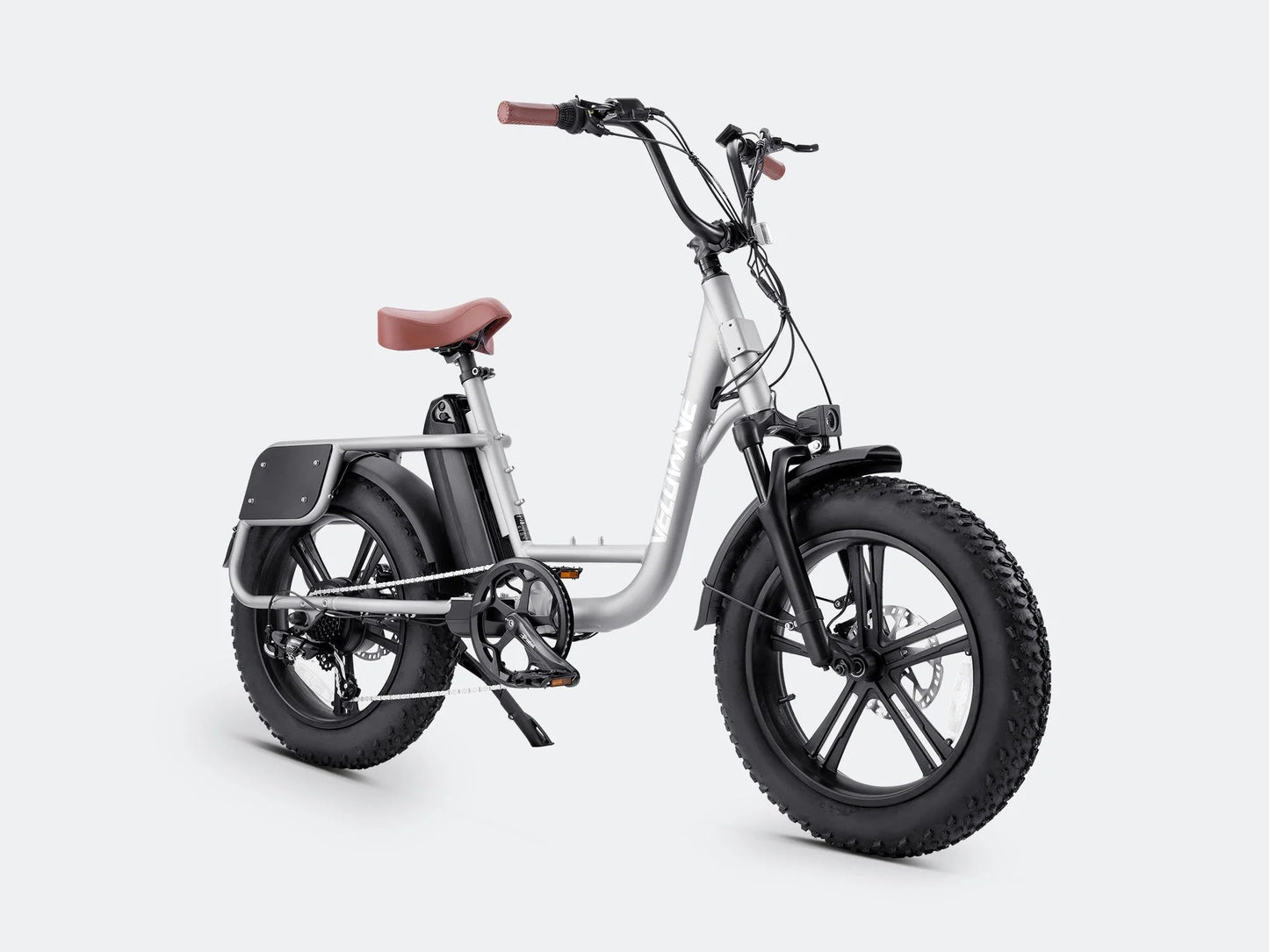

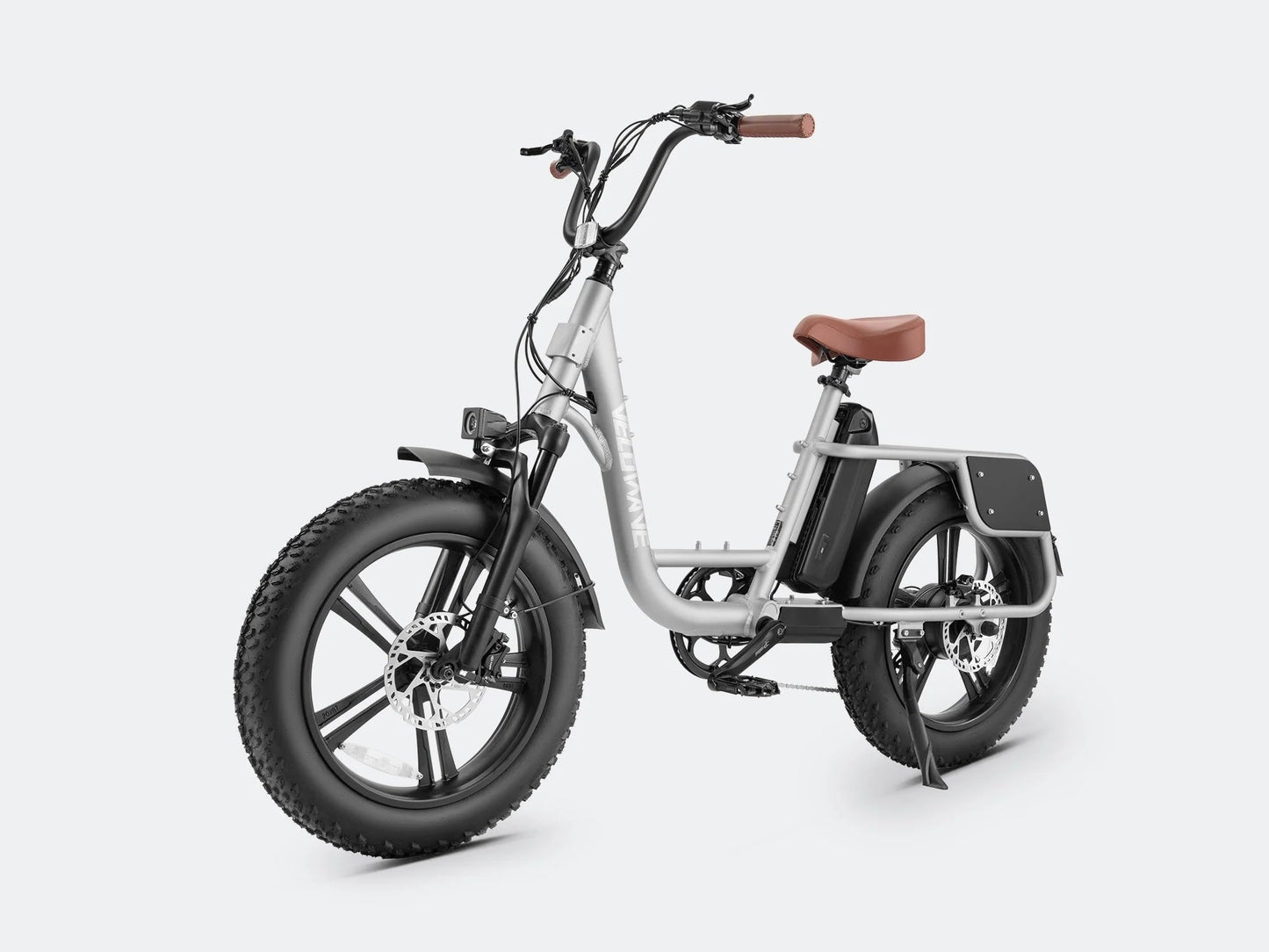

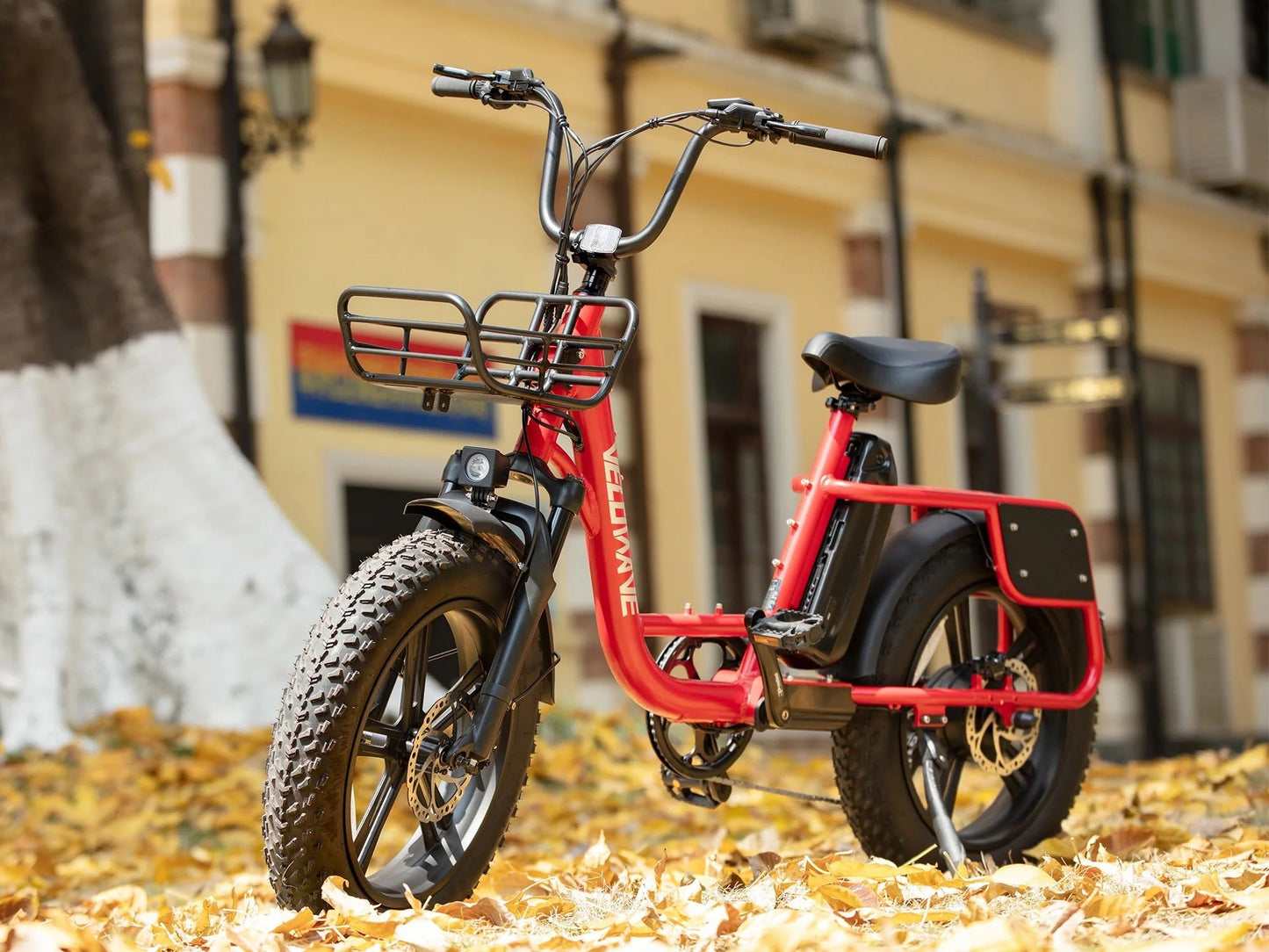

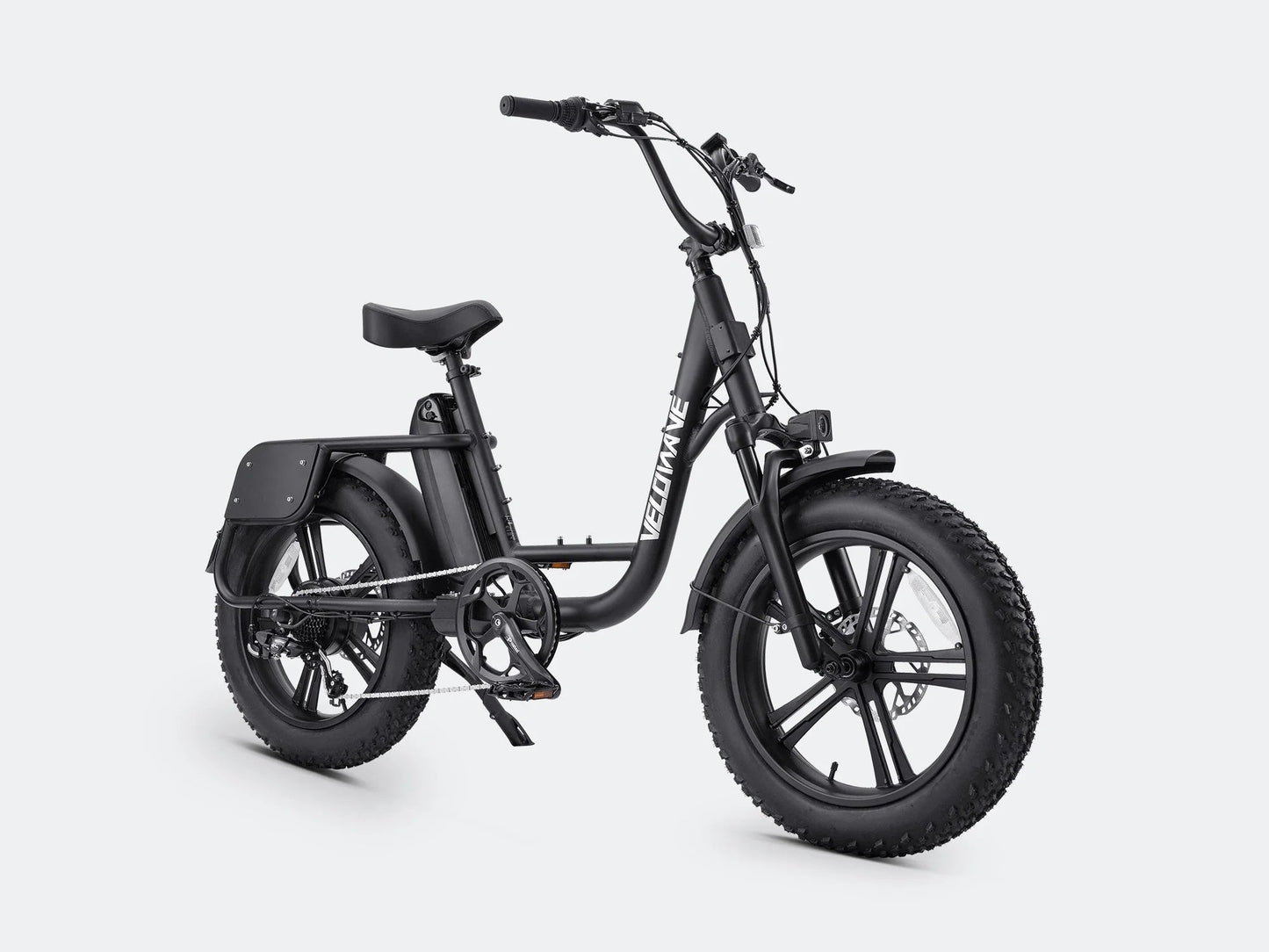

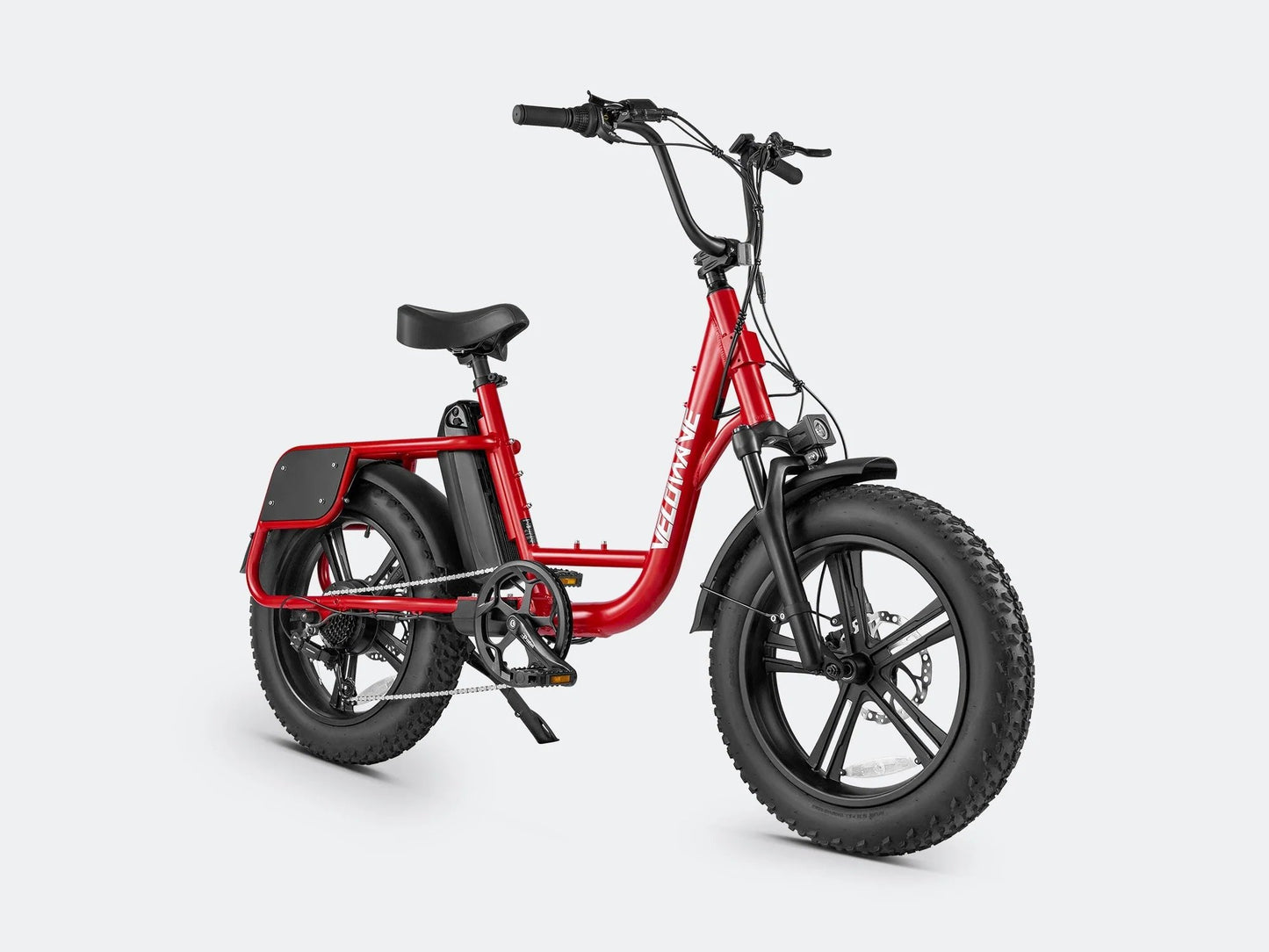

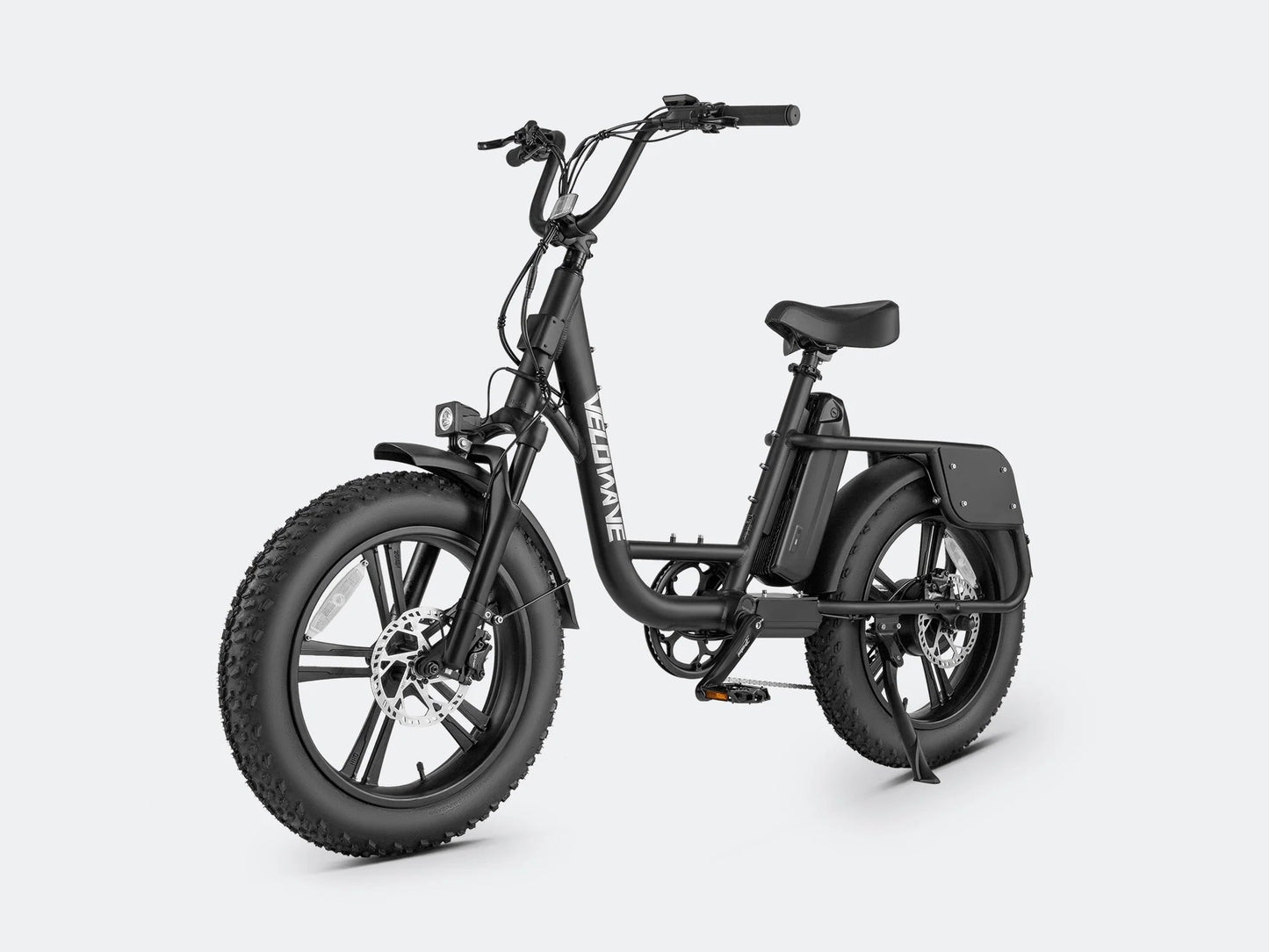

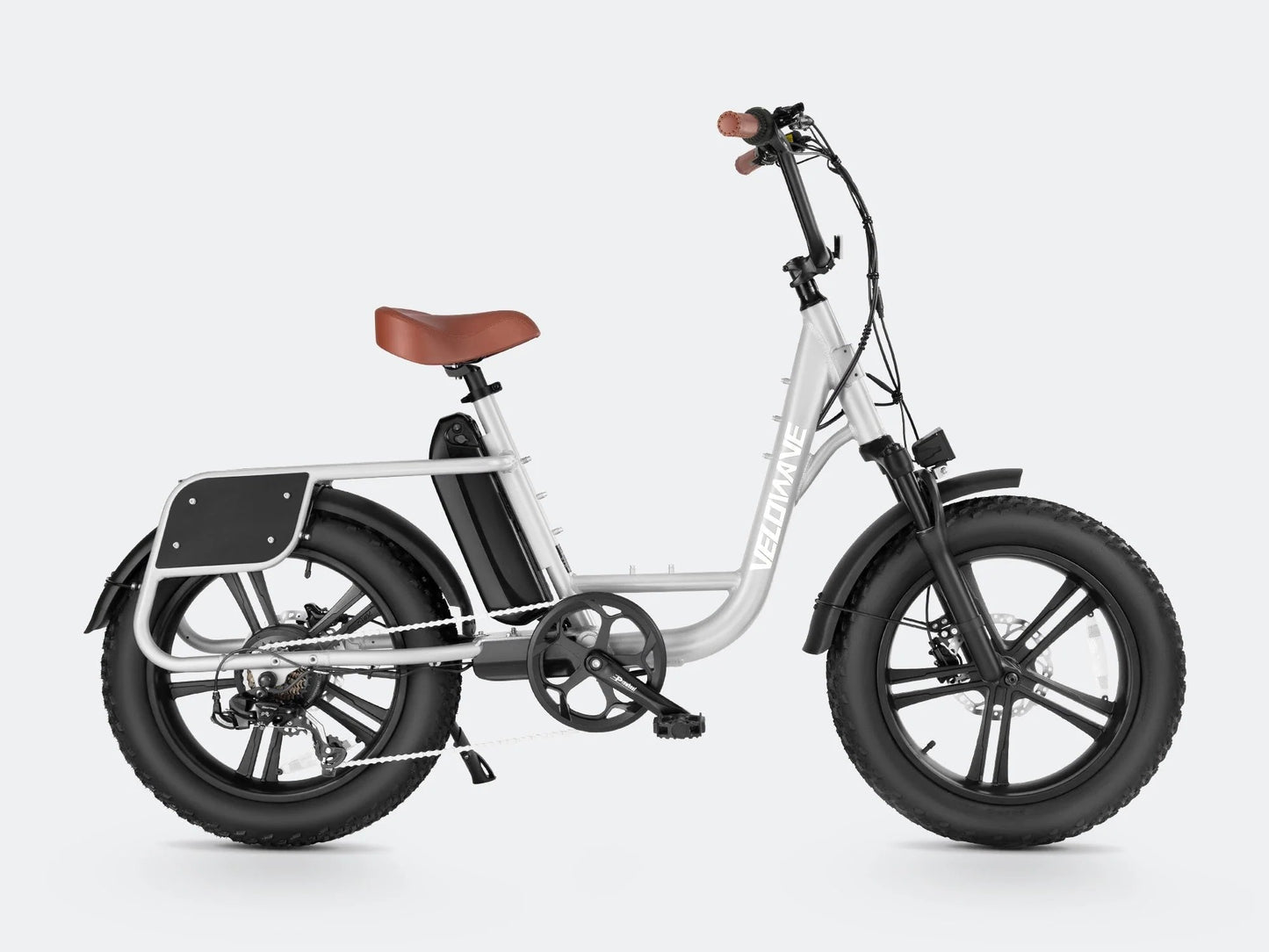

VELOWAVE Prado S Commuter Electric Bike
Key Features:
- Great Handlebar

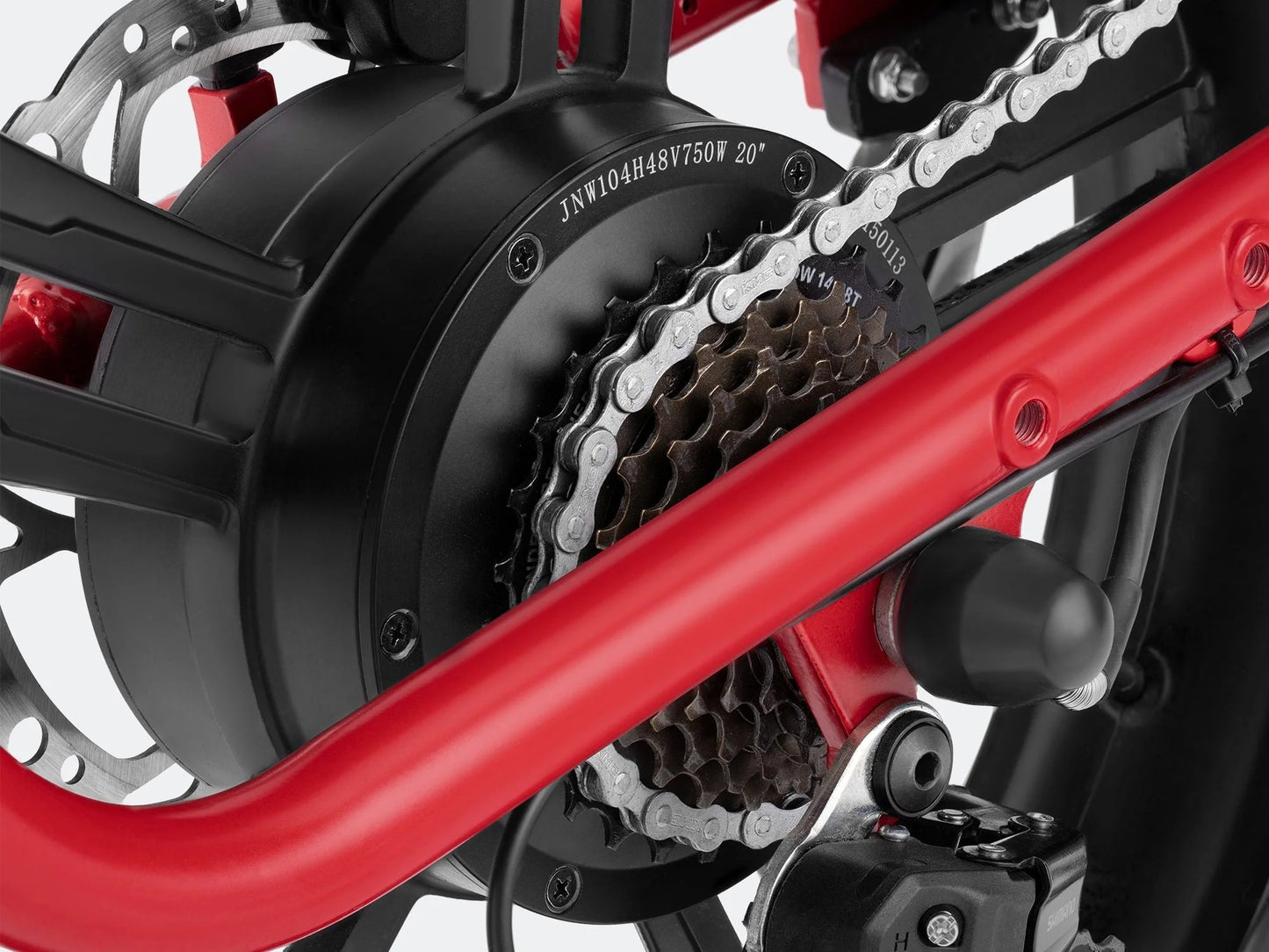

- 750W BAFANG Geared Hub Motor
- Fender Design

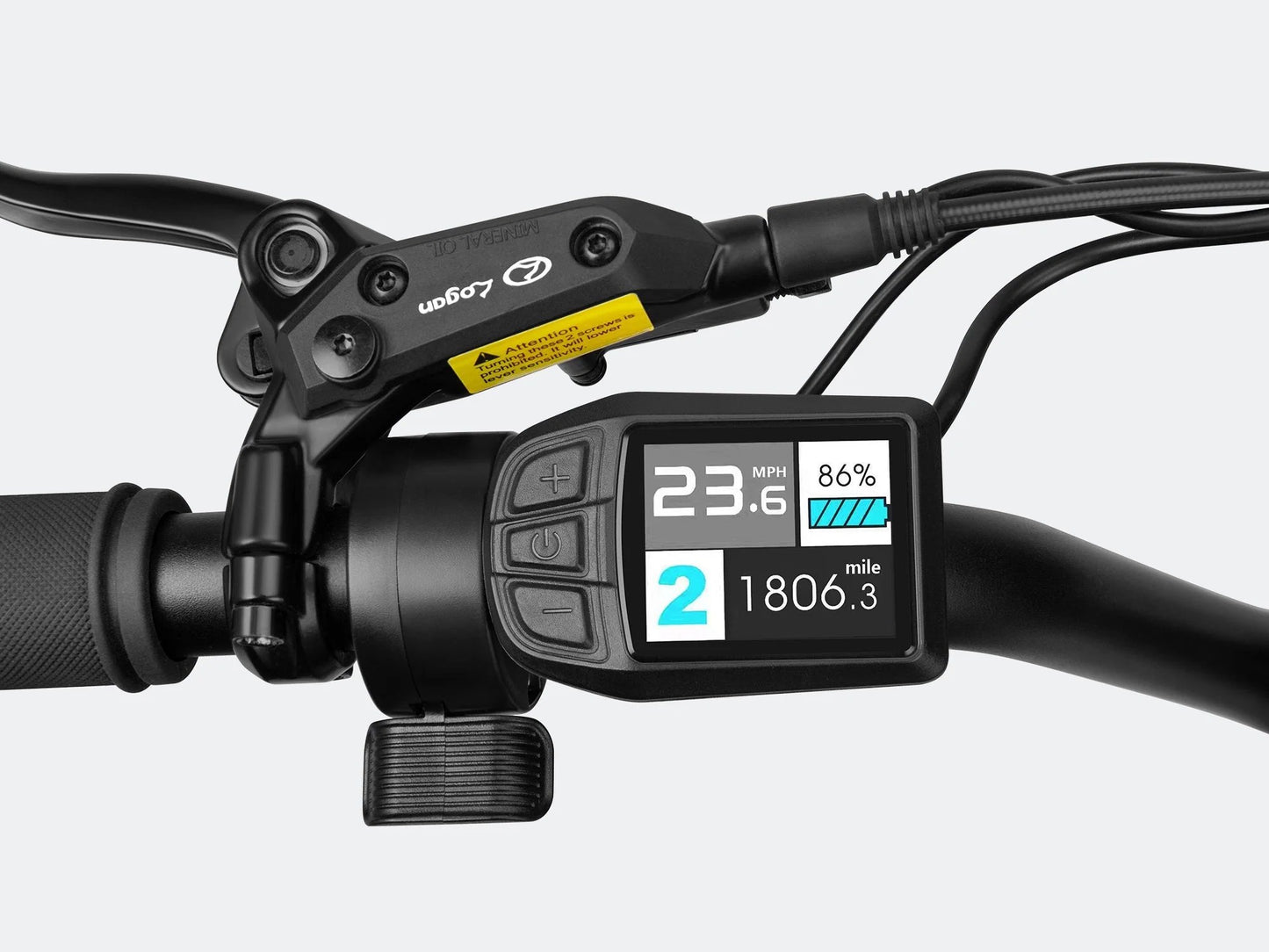

- Multifunctional Color Display + Thumb Throttle
- Front Hydraulic Suspension Fork
- Comfortable and Widened Cushion
- Hydraulic Disc Brakes System
- 48V 15Ah LG Battery
- Shimano 7-Speed Drivetrain
Description
Specification
General |
|
Classes |
Class 3(E-bikes can go up to 28mph with pedal assistance) |
Max Speed |
25MPH by pedal, 20MPH by throttle |
Range |
25 to 40+ Mile by Pedal; 23+ Mile by Throttle(Calculation based on rider's weight of 75kg. Range varies according to road condition, weather, rider's weight etc.) |
Frameset |
|
Frame |
6061 Aluminium, Removable Battery, Internal Routing, Rear Rack Integrated with Frame |
Fork |
Hydraulic Suspension Fork |
Fenders |
Included |
Wheels |
|
Rim Materials |
Aluminum |
Rim Size |
20 x 3.0 |
Rim Type |
Wheel with Integral Hub |
Tire |
Kenda Fat Tires |
Tire Size |
20" x 4.0" |
E-system |
|
Battery |
48V 15Ah, 720Wh, LG 21700 Cells |
Charger |
Input 100-240V~, 2.8A(Max.), 50-60Hz. Output 54.6V⎓2.0A, Aviation Connector. UL LISTED |
Motor |
BAFANG Geared Hub Motor, Rated 750W, Peak 1275W, Max Torque 55NM |
Controller |
48V 25A Peak |
Display |
Multifunctional Color-Screen Display |
Pedal Assist |
Cadence Sensor |
Throttle |
Thumb Throttle |
Front Light |
48V 10W LED Light |
Drivetrain |
|
Shifter |
Shimano, 7-Speed |
Rear Derailleur |
Shimano, Long Cage |
Crank & Chainring |
52T, 160mm Alloy Crank |
Freewheel |
7-Speed |
Pedal |
Alloy Platform Pedals |
Components |
|
Saddle |
Comfortable Wide Saddle |
Handlebar |
Alloy, 730mm width |
Grips |
Nylon Lock-on |
Brake |
Front & Rear Hydralic Disc Brakes |
Brake rotor |
180mm, 1.9mm thick |
Kickstand |
Side Kickstand |
Seatpost |
Forged Alloy, ∅31.6*350mm |
Stem |
Bar bore: ∅31.8mm, Clamp I.D.: ∅28.6mm, HEIGHT: 40mm, RISE: 0° |
Handlebar |
Aluminum ∅31.8mm,Width 710mm |
Weight |
|
Net Weight |
35kg(77.2lb) |
Gross Weight |
46kg(101.4lb) |
Battery Weight |
3.5kg(7.7lb) |
Weight limit |
150 kg (330 lb) Payload Capacity |
Size |
|
Product Size |
1790x730x1190mm |
Packing Size |
1530x320x860mm |
